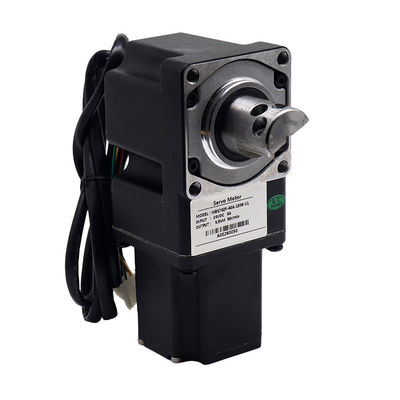

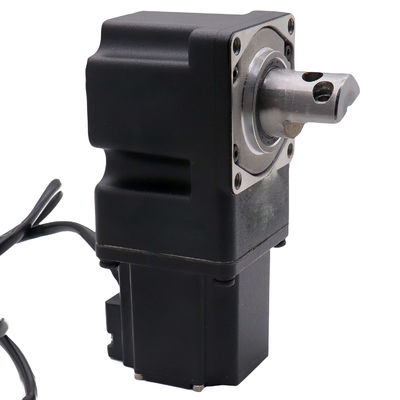

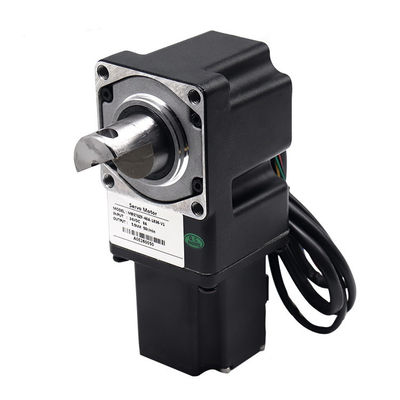

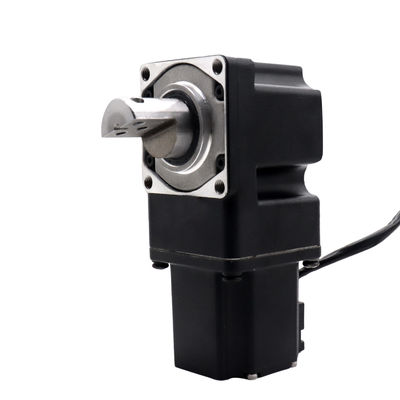

40W BLDC 24V Servo Motor With 2400 Wires Encoder for Anti-collision Swing Gate

Product Description
The 40W BLDC 24V Servo Motor is a high-performance, low-voltage brushless DC servo motor specifically engineered for modern automated swing gate and pedestrian access control systems. Operating on a safe 24V DC power supply with a rated power output of 40W and a rated speed of 1800 RPM, this motor is designed to deliver reliable and efficient operation for high-cycle access points. At the core of its precision is a high-resolution 2400-line incremental encoder, which provides exceptional position feedback for accurate servo closed-loop control. Engineered for demanding environments, this motor boasts a long service life of over 6 million cycles and a rugged IP54 protection rating, ensuring durability for both indoor and outdoor applications.

Features
① High-Resolution Position Feedback: The integrated 2400-line incremental encoder delivers 12,000 pulses per revolution (PPR), offering resolution 400 times higher than that of traditional brushless motors for precise positioning and smooth motion control.

② Low-Voltage Safe Operation: Operating at DC24V, the motor ensures enhanced safety for both users and installers, complying with standard security and gate automation requirements.

Efficient BLDC Technology: The brushless DC design provides superior performance, higher efficiency, quieter running, and a longer maintenance-free lifespan compared to brushed alternatives, with no carbon brushes to replace.

③ Integrated Anti-Collision Clutch: A built-in safety clutch mechanism automatically disengages the gear train when an obstacle is encountered, preventing damage to the gate and motor while ensuring user safety.

Robust Servo Control & Fast Response: The servo closed-loop control system enables rapid 0.4-second opening times, 2x current overload capacity, and strong push-resistance, making the motor 125 times more precise than traditional brushless motors.

④ Durable & Weather-Resistant Construction: Featuring an IP54 rating for resistance to dust and water, along with a tested operational life exceeding 6 million cycles, this motor is built to withstand continuous use in outdoor environments.

⑤ Advanced Safety Algorithm: The servo vector algorithm ensures sensitive anti-pinch protection, instantly detecting obstacles to prevent injury to pedestrians.

Application
